Adam Tech's Standard Cable Assembly

Adam Tech launched standard Cable Assembly items for the increasing inquires, along with original quality connectors to provide total solution and service. Customers now can pick up specific board side connectors with necessary cables in one click to their door steps.

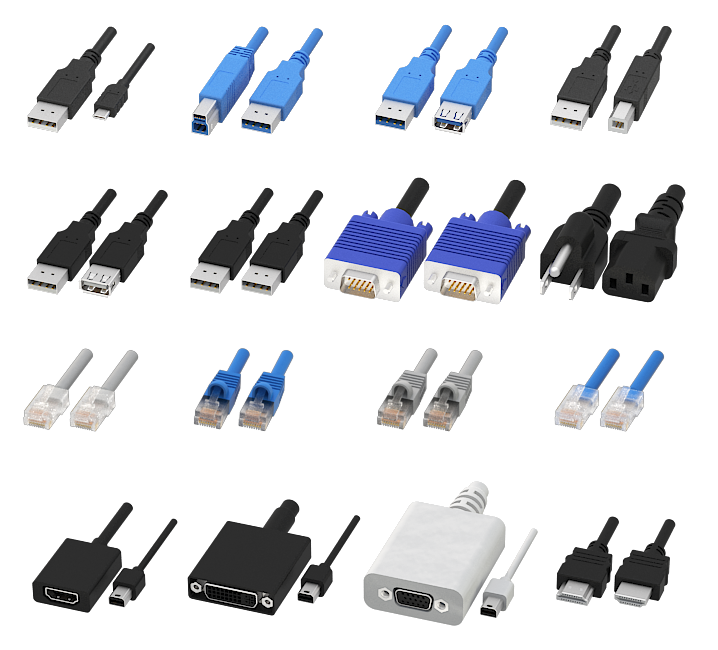

To ease up engineering process toward complete connections, selected quality cables with dedicated plugs could come in handy and save the day. Start with USB 2.0 to USB TYPE-C conversion cables, Ethernet Cat5e, Cat6 network patch cables, USB 2.0, USB 3.0 Type A/B M/F extension cables, HDMI 1.4 extension cables, VGA extension cables and Mini Display Port to HDMI, DVI and VGA conversion cables in most asked lengths.

USB Type-C
To inherit USB developed market for next 20 years, USB Type C truly integrates all generation of USB standards and forms into the new era of device connectivity. USB 2.0 type A plug with USB type-C plug will come to rescue in transition of USB 2.0 host to USB type-C devices.

USB 3.0
SuperSpeed USB 3.0 connectors and cable assembly brings significant performance enhancements to the ubiquitous USB standard, backward compatible with billions of USB 2.0 enabled devices in the market. It will deliver 10x the data transfer rate of Hi-Speed USB and improved power efficiency.

Features & Benefits

• Meet up USB 3.0 specifications, up to 5 Gbps
• Minimized connector factor variations
• Material used stands high-temperature requirement, RoHS compliance

Applications

• Ultrabooks, Tablets
• Desktop and laptop
• Cameras
• Digital audio, HiFi A/V entertainment
• Storage, portable devices
• Game console
• Set-top box

Mini DisplayPort
Active Mini DisplayPort cable adapter, converts Mini DisplayPort to HDMI with audio pass-through support, enabling you to connect a desktop or laptop computer that�s equipped with Mini DisplayPort A/V output to an HDMI monitor, projector, or display.

Features & Benefits

• Built-in active circuitry converts DisplayPort into HDMI, single link DVI, or VGA signals, depending on the model in use.
• Complies with VESA interoperability Guideline.
• Passes EDID information from display to the source.

Applications

• Digital entertainment centers, home offices, business conference rooms and trade show displays.
• Prolongs HDMI, DVI, VGA enabled monitor with Mini DisplayPort host.
• As secondary display over DP hubs.

Network RJ45 Category 6
Adam Tech, as always, strives to deliver you the highest performance achievable with its 550MHz, Cat 6 patch cable. Meets all Cat6 TIA/EIA standards, for fast Ethernet and Gigabit networks that require bandwidth intensive voice, data, or video distribution applications.

Features & Benefits

• Conform with ANSI/TIA-568-C.2.
• UL * ETL verified.
• UTP 250 to 550 MHz, 24 AWG, 8P8C, UL94V-0 cable.
• Gold plated RJ45 Male to Male Crystal head.

Applications

• Up to Gigabits 1000 BASE-T (IEEE 802.3)
• Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels, and other twisted-pair applications.

Part Number	View Inventory
CA-USB-AM/CM-1FT
NPC-5E-003-GY
NPC-5E-007-BU
NPC-6-003-GY
NPC-6-010-GY-BB
CA-USB3-AM/AF-3FT
CA-VGA-M/M-6FT
CA-MINIDP-HDMIF-10FT
CA-HDMI-AM/AM-3FT

See also:

ADAM TECH Cable Assembly (.pdf) for more product information, specifications, applications and ordering information
