Xtra-Guard^® Industrial Ethernet

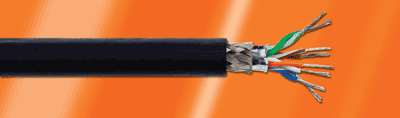

Alpha Wire's new line of Xtra-Guard® Industrial Ethernet Cat 5e cables combine the advanced technology of Ethernet communications with the durability and temperature range of Alpha's renowned Xtra-Guard 4 jacket. The result is a flexible and routable Ethernet cable that provides rugged, reliable performance in the most extreme environments.

Product Features:

• -50°C to 105°C (PP core) and 125°C (FEP core)
• 4 times OD (unshielded) and 8 times OD (shielded) cold bend radius per TIA-568-C.2
• Meets ANSI/TIA-568-C.2 Cat 5e requirements
• UL Type CMR and suitable for use in NFPA 79 applications*
• Sunlight, fluid, and abrasion resistant
• High-performance TPE jacket provides three times the low temperature flexibility of PVC
• Unshielded, foil shielded, or Supra-Shield® foil + braid for best EMI protection
• CE, CSA - CSA/C(UL) TYPE CMR, CSA FT4, ROHS - RoHS Compliance, UL CMR, UL - FT4

Applications:

• Military
• Oil & gas
• Cold weather environments
• Mining
• Factory floor automation
• Process control systems
• PLC interconnect
• Machine control interface
• High-speed communications systems
• Safety & security interconnect

See also:

• Alpha Wire's Xtra-Guard® Industrial Ethernet Brochure (.pdf) for more product information, specifications, applications and ordering information.
