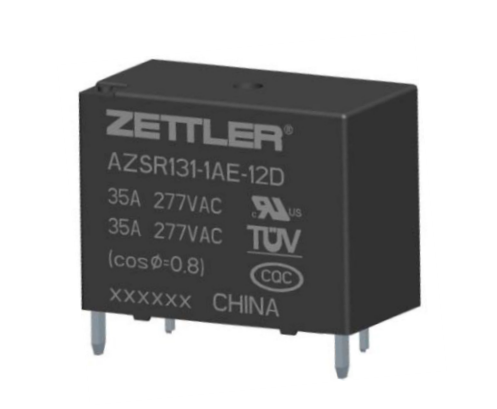

Zettler Introduces the 35 AMP Miniature Power Relay AZ SR131 for Solar Applications.The new AZ SR131 miniature power solar relay series are capable of switching up to 35 A at 277 VAC. Coil voltages range from 5 up to 48 VDC. The relay is designed for the use in solar inverter applications according IEC 62109 but can be used in many other applications as well.

The dielectric strength is 4.5 kV between coil/contact. The relays are able to withstand 10 kV surge voltage. In the standard version the AZ SR131 has a contact gap of 1.8 mm and a dielectric strength of 2.5 kV between open contacts. A wide contact gap version (2.3 mm) is also available, with dielectric strength of 3.5 kV between open contacts.

The electric life expectancy is specified with 30,000 cycles at 35 A 277 VAC at an ambient temperature up to 85°C. The relays are available with silver tin oxide SPST-N.O. (1 Form A) contacts. Class F insulation (155° C) is standard.

The AZ SR131 power relays meet RoHS, REACH as well as IEC 61810-1 for the use in low voltage equipment and UL 508 for industrial control panels. Versions compliant to IEC-60335-1 (GWT Glow Wire Testing) for household appliances are also available.

See also:
Zettler AZ SR131 (. pdf) for more product information, specifications, applications and ordering information.
