Amphenol Announced ZConnect Series - Anti-vibration, Blind Mate, Audible Feedback

Though it is low profile (8mm max mated) for space saving it is still robust enough to meet automotive requirements of LV214 (VW75174) ranging from 8 to 40 contacts @1A up to 120V DC available in 0.9mm, 1.8mm and 2.7mm pitch. Mated and Unmated IPx67 option would be available upon request.

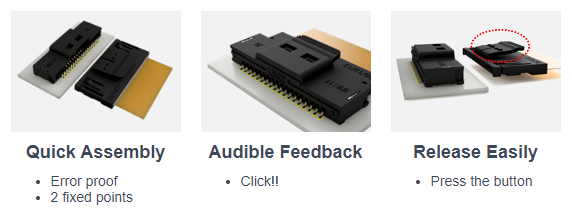

Key Features：

• Anti-Vibration
• Multiple Contacts
• Low Profile (8mm max mated)
• Audible Feedback
• Improved Assembly Efficiency
• Cost and Space Saving

General Characteristics：

• LV214 Compliant
• Contacts: 8 ~ 40
• Operating Temp.: -40°C ~ 110°C
• Operating Voltage: 120V DC
• Current Rating: 1A
• Pitch: 0.9 / 1.8 / 2.7 mm

Assembly Instruction ：

Applications：

• Battery Management System
• Automotive
• Medical Equipment
• Energy Storage System
• Commercial Millitary
• Advanced Driver Assistance
