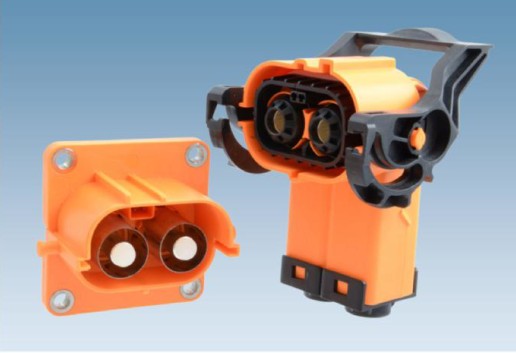

Amphenol Designs Universal Power Connector

UPC (Universal Power Connector) is a plastic power connector series especially designed to be used in the hybrid electric vehicle market. The 2-pole and 3-pole connectors incorporate the patented RADSOK technology for higher amperage, lower Trise and voltage drop, and less resistance.

Features & Benefits:

• Plastic shell, light weight
• Compact design for space considerations with Evs
• Wide amperage range (250-400A)
• Low matinglun-mating force
• Durability: 500 mating cycles minimum
• Touch-Proof (UL 2251)
• UL 94V-0
• HVIL
• EMI (60db/100M)
• IP67 when mated
• RoHS Compliant

See Also:

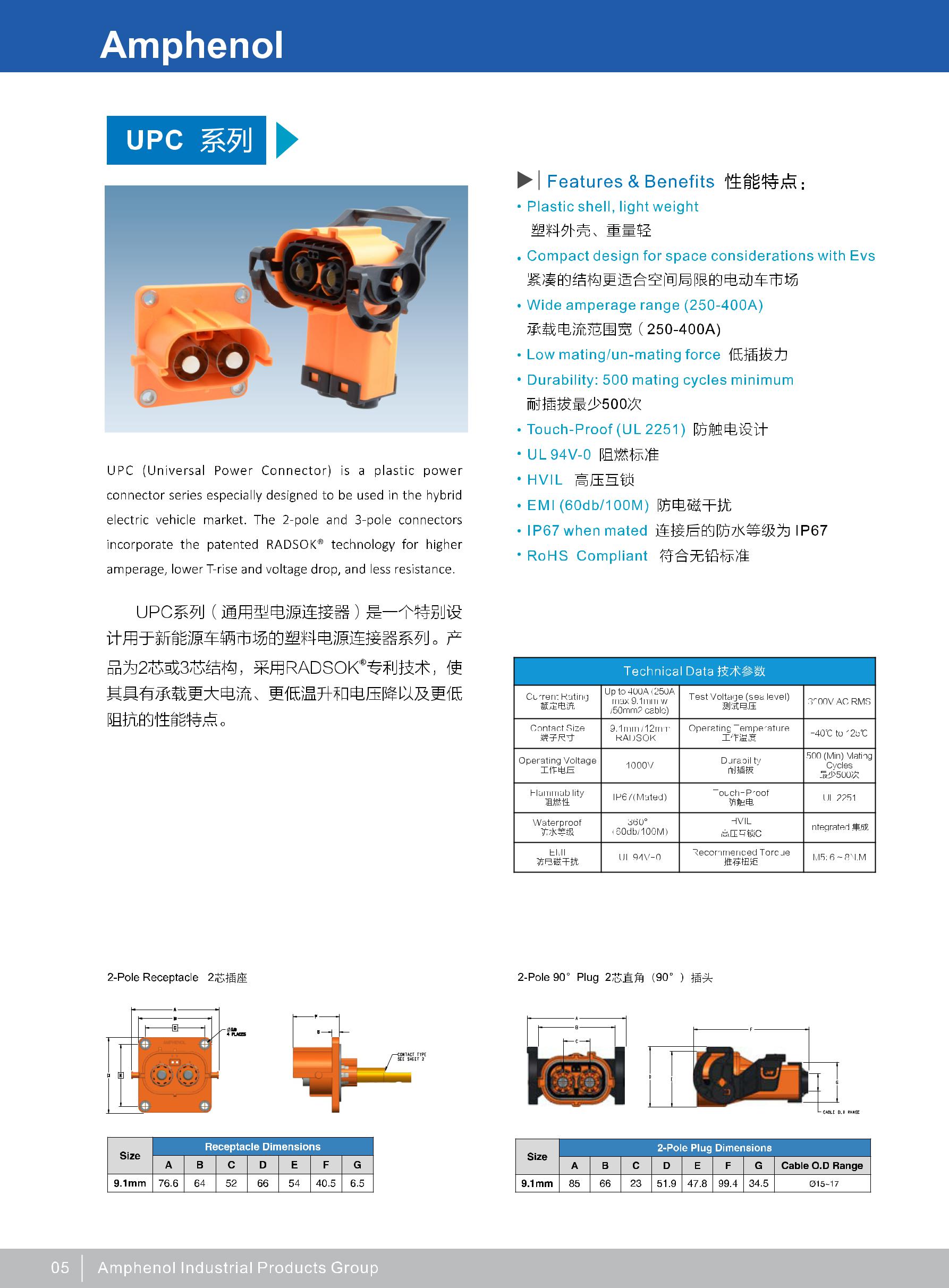

Amphenol Universal Power Connector (. JPG) for more product information, specifications, applications and ordering information.
