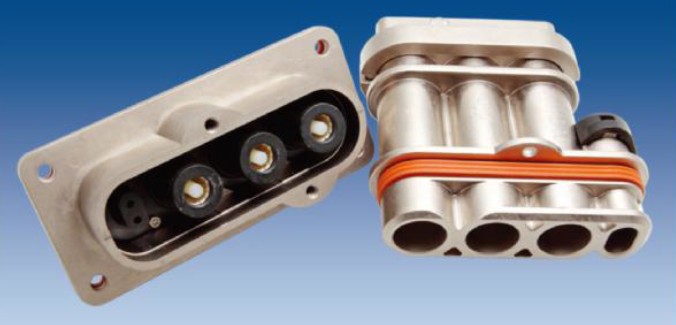

Amphenol EPower Series of Connector

Amphenol ePower series of connectors are designed for the demanding requirements of hybrid, electric vehicles, and utility truck electrical systems, operating at 800vac to|000vdc with a 200A to 500A rating. Meantime, it offers a 40% smaller footprint than three EMI shielding cable glands and easier operation of termination with shielded cable by a washer compressing the shield to the inside surface of the shell. The connector series covers 2 or 3 power contacts.

Features & Benefits:

• Two or three circuit power
• Crimp, lug or bus bar termination
• lP2X on pin and socket
• Environmental IP67 rating
• Two HVIL circuits
• 1,000vdc rating
• 5.7mm-14mm RADSOK technology for 200 to -500A current capability
• Strain relief for jacketed cable incorporated into shell
• Integrated EMI shielding
• Excellent vibration resistance
• All aluminum shell

See Also:

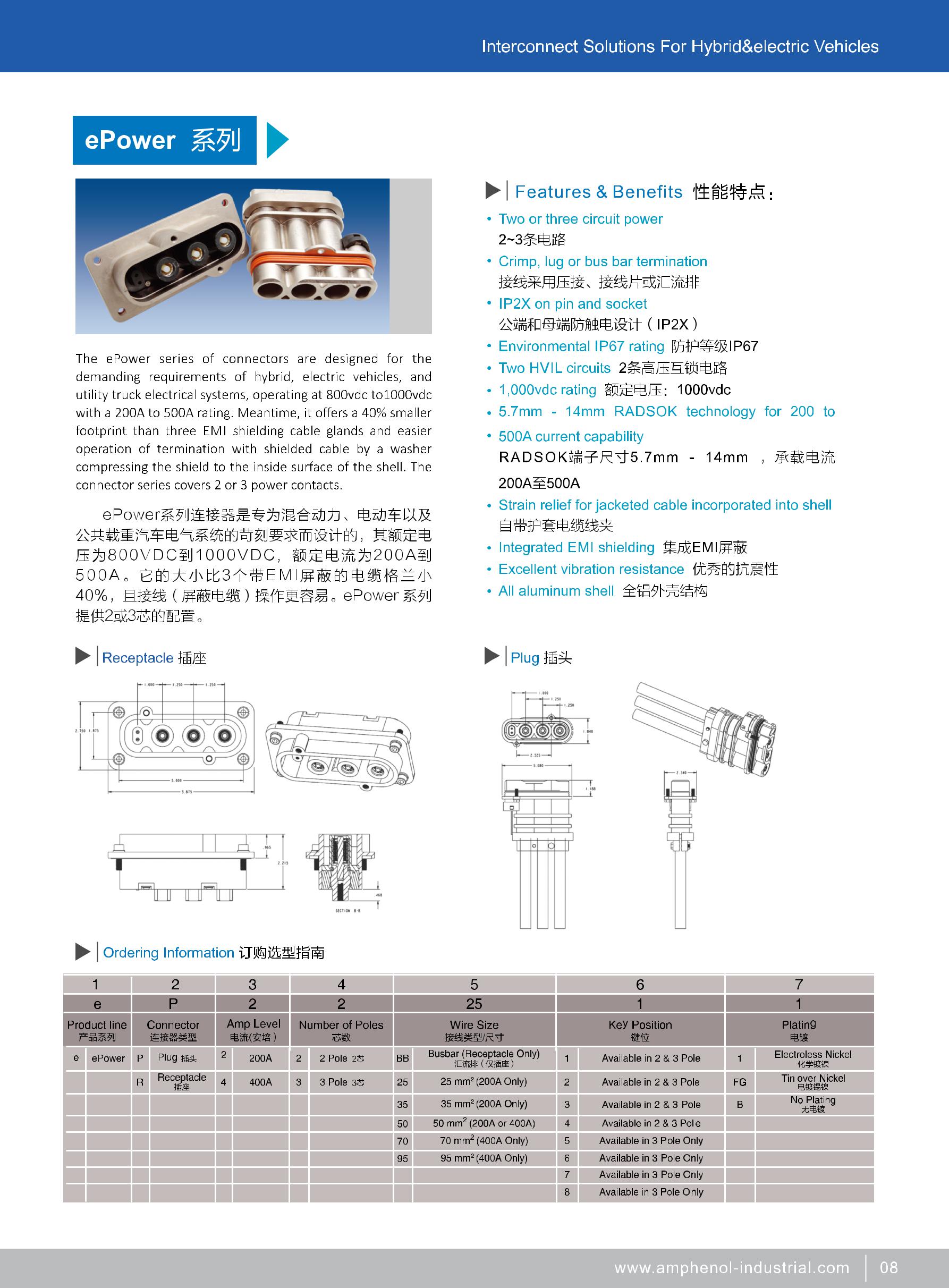

Amphenol EPower Series of Connector (. JPG) for more product information, specifications, applications and ordering information.
