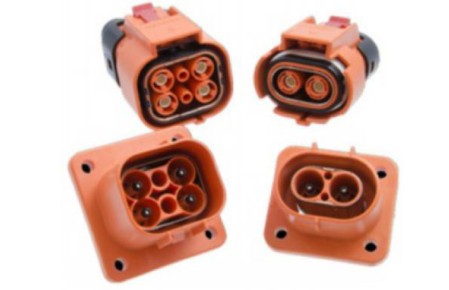

Amphenol EPower-Lite Power Connector Series

Amphenol ePower-Lite is a plastic power connector series especially designed to be used in the electric vehicle market. There are 2-pole, 3-pole and 4-pole for options. The robust plastic shell can withstand high temperature up to 125°C and provides 360 degree EMI function and integrated HVIL contacts in the connectors.

Features & Benefits:

• Plastic shell, light weight
• Compact design for space considerations with EV/HEV
• Secondary locking feature
• Low mating/un-mating force
• Durability: 100 mating cycle's minimum
• Water proof: IP67
• Touch proof: IEC 60529
• Flammability: UL 94V-0
• EMC optional
• HVIL optional
• Adding secondary locking
• RoHS Compliant

See Also:

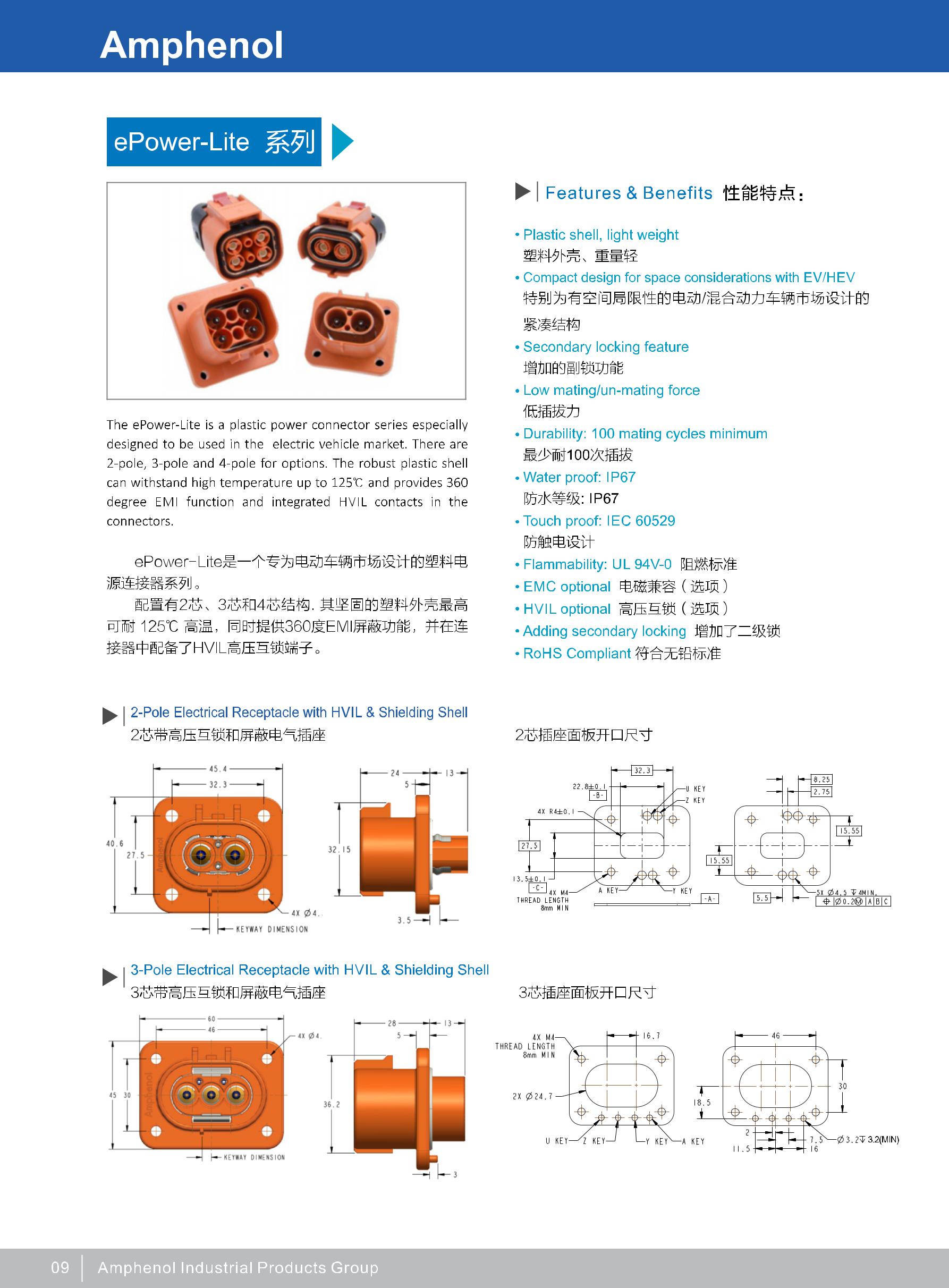

Amphenol EPower-Lite Power Connector Series (. JPG) for more product information, specifications, applications and ordering information.
