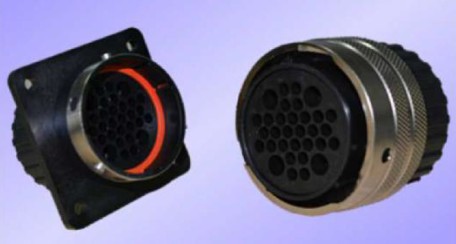

Amphenol Introduces UPT Connectors

Based on the 26482 Series I, AmphenolUPT is a plastic shell interconnects with a metal bayonet coupling system and crimp contacts. Featuring a light weight design, smaller footprint and easy field installation,the UPT is a cost effective industrial connector solution. The UPT provides more options for industrial interconnect markets that do not require a metal shell or Mil- Spec equivalents.

Features & Benefits:

• Contact sizes and arrangements: 12 & 16 stamped & formed crimp contacts, two insert arrangements den available (24-32 & 24-48)
• Intermateable with Souriau TrimTrio, UTC, and ITT Trident Ringlock
• Wall mount, jam nut, and straight plug shell styles
• Plastic shell, light weight
• Metallic bayonet coupling, molded receptacle
• Quick connect/Disconnect
• Multiple back shell sealing accessories
• ROHS compliant

See Also:

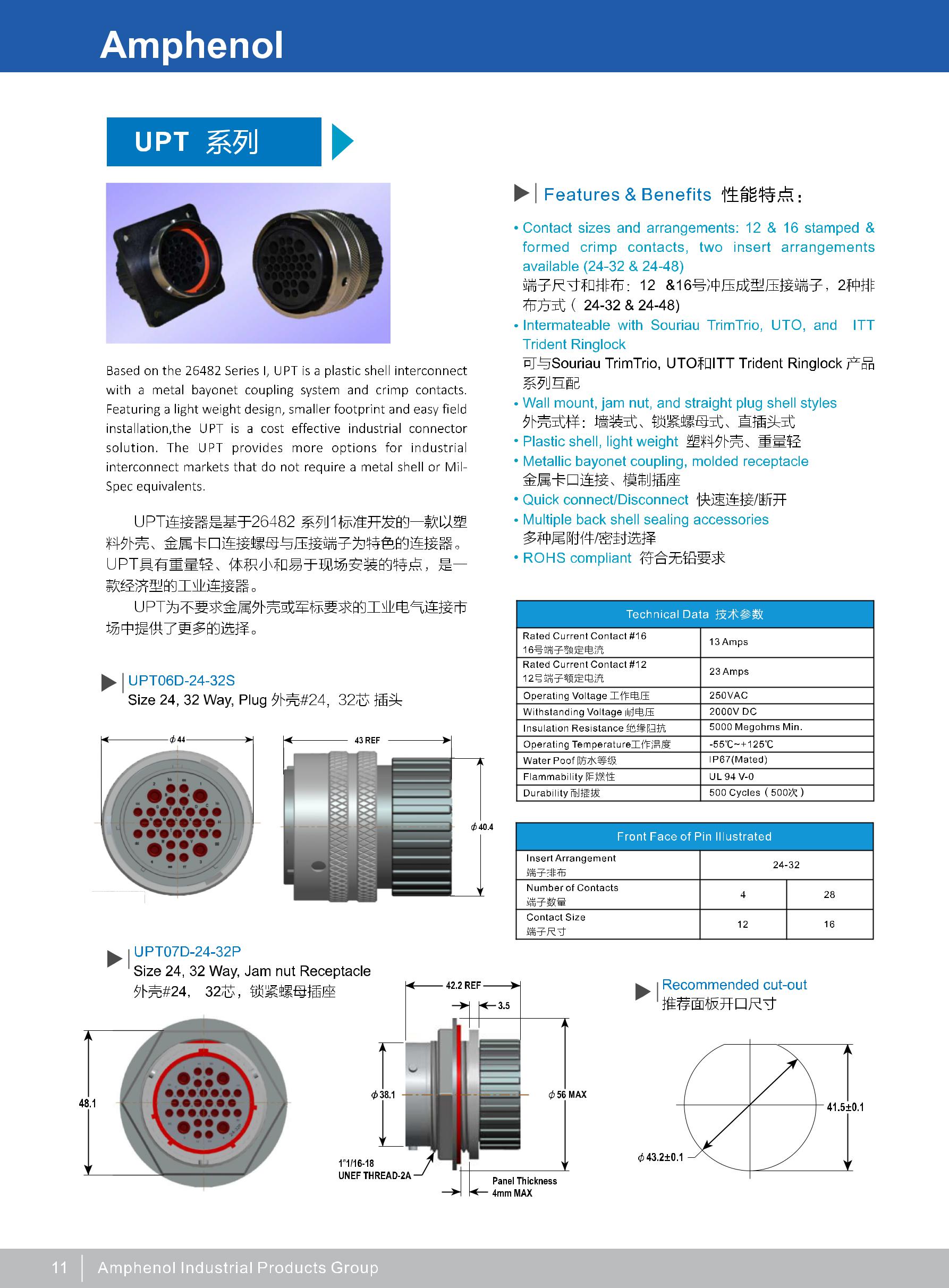

Amphenol Introduces UPT Connectors (. JPG) for more product information, specifications, applications and ordering information.
