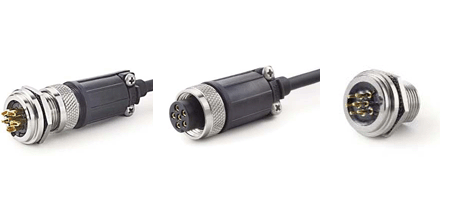

Features & Benefits

• Complete replacement for MINI-CON-X®
• Panels are factory assembled and sealed
• Scoop-proof connector design
• Anti-slip machined nut standard on panel connectors
• Precision machined housings
• Two shell sizes & multiple keying arrangements

Product Specifications

• Materials
  • Panel Shell, Cable Housing & Coupling Nuts: Nickel plated copper alloy
• All Connector Inserts: Engineered Polyester Resin
• Contacts: Gold plated copper alloy with nickel underplate
• Backshell & Strap: G.F. Nylon
• O-Rings: Neoprene
• Screws: Stainless Steel
• Mechanical
  • Shock: Method 213, Mil-Std 202
  • Vibration: Method 201, Mil-Std 202
  • Life: 400 insertion/withdrawl cycles
• Electrical
  • Voltage Rating: Tested at 600 VRMS
  • Insulation Resistance: Method 302, Mil-Std 202
  • Contact Resistance: Method 307, Mil-Std 202
  • Current Ratings:
    • 13A: 4 maximum #16 contact with 16 AWG
    • 7.5A: 3 maximum #20 contacts with 20 AWG
    • 5.6A: 12 maximum #20 contacts with 20 AWG
• Environmental
  • Temperature Rating: -40°C (-40°F) to +85 °C (+185°F)
  • Thermal Shock: Method 107, Mil-Std 202
  • Moisture/Salt Spray: Method 106F / 101 Mil-Std 202
• Product Ratings
  • IP66 / IP68 (when mated)
  • RoHS Compliant
