Press release

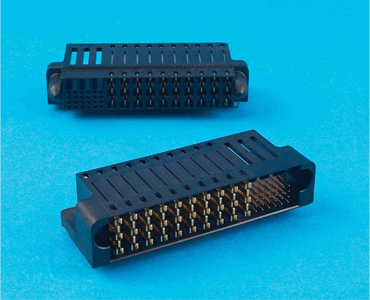

FCI Launches The HCI® Power Distribution Connector System With A Dedicated Microsite

ETTERS, PA. (June 16, 2008) — FCI, a leading developer of connectors and interconnect systems, announces the launch of the HCI® Power Distribution Connector System.

HCI technology anticipates increasing system power demands that are driving the need for greater power density. A single HCI power contact accommodates over 82 amps based on a 30°C temperature rise with zero airflow. The high current-carrying capacity coupled with a robust, molded-in guidance system are ideal for high-wattage, blind-mate power supplies.

Part Number	View Inventory
8DC+20S Right Angle HCI® Header
7DC+24S+4DC Right Angle HCI® Header
7DC+24S+4DC Right Angle HCI® Receptacle
10DC+24S Vertical HCI® Receptacle
10DC+24S Right Angle HCI® Header
2DC+16S+4DC Right Angle HCI® Header
2DC+16S+4DC Vertical HCI® Receptacle
8DC+20S Vertical HCI® Receptacle
11DC+24S Right Angle HCI® Header
11DC+24S Vertical HCI® Receptacle
14DC+24S+14DC Right Angle HCI® Header
14DC+24S+14DC Vertical HCI® Receptacle

The stamped and formed HCI power contacts, initially pioneered by FCI on its PwrBlade ® system, are an innovative and cost-effective alternative to expensive screw-machined contacts for high-current applications.

The HCI connector system is designed to address requirements that extend beyond the capability of FCI’s proven PwrBlade connector system, the industry standard for DC power supply interfaces and power distribution.

Tooled HCI configurations support standard co-planar and backplane interfaces. The fully integrated HCI design enables DC power, AC power and signal contacts in a single molded housing. Similar to PwrBlade, HCI is modularly tooled, allowing incredible flexibility to address custom configuration requirements.

HCI features cost-effective stamped contacts, a vented but touch-proof housing to optimize airflow above, below and through the connector. This allows heat to convect away from contact surfaces producing the lowest product height among comparable high-current connectors.

###
