JAE'S Newly Developed JB10 Series Connector

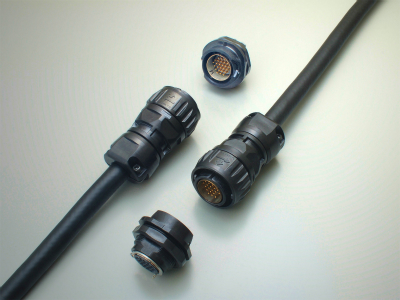

JAE has developed a new circular connector - "JB10 Series" with an all-plastic shell and one-touch locking feature.

The JB10 correspond to shielding structure with an integrated press member. The connector utilizes a plastic shell allowing a low-cost solution.

The connector will be offered as a 26 position solution, with IP67 rated dust and waterproof in the mated condition. The connector is ideal for a wide range of multi-core signal applications, such as for factory automation equipment and information/data communication devices.

The jam-nut type receptacle allows for easy chassis mounting, while an O-ring ensures a secure waterproof feature between chassis and receptacle. The receptacle is currently offered as a front-mount, and as on-going development a rear-mount will be offered to cater to different customer requirements.

The connector comes with a straight plug with a simple tool-less termination structure where the shield wires can be terminated easily yet a secure harness assembly.

The cable clamp structure, with a two-point screw lock, secures high cable retention strength.

Features

• All-plastic, light-weight and low-cost connector.
• One-touch, push-and-twist, lock mechanism with good operability and vibration resistance.
• IP67 rated dust and waterproof in mated condition.
• Internal shielding structure.
• Tool-less shield termination process for simple harness assembly.
• Selectable insert orientation - pin or socket insert can be selected based on application requirement.
• Highly reliable multi-point contact structure for vibration resistance.

Applicable Markets

Machine tools, robotics, servo motors, and various industrial equipment such as communication devices
