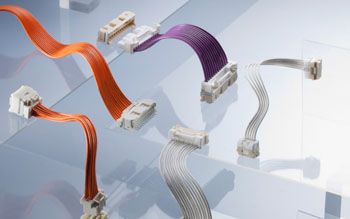

Molex CLIK-Mate Wire-to-Board Connector System

The rugged Molex CLIK-MateTM wire-to-board system provides secure electrical contact, low insertion force and mating assurance in a wide variety of configurations, circuit sizes and current options.

Features and Benefits

• Positive inner locks enable simplified cable assembly for operators.
• Tuning-fork style contact design offers secure electrical contact and avoids terminal stubbing.
• Flat area for pick-and place facilitates board placement.
• Reinforced metal solder tabs provide secure PCB retention and solder joint strain relief.

Applications

• Consumer
  • Gaming machines
  • LCD and TV Panels
  • Automotive
  • Infotainment
  • Interior Mirrors
• Lighting
  • LED Light Modules
  • Office down Lights
  • Industrial
  • Scanners
  • Smart Grid Meters
• Medical
  • Patient Monitors
  • Surgical Equipment

See also:
Molex CLIK-Mate Wire-to-Board Connector System (.pdf) for more product information, specifications, applications and ordering information.
