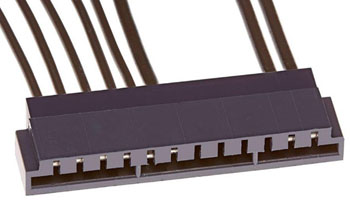

Molex Edge Mate Wire-to-Edge-Card Power Connectors

Available in glow-wire-compatible versions, MOLEX Edge Mate power connectors eliminate the need for mating headers, offering significant cost savings in appliance, industrial and lighting applications.

Features and Benefits

• Mates directly to the PCB edge card without a mating header reduced inventory, bill-of-material and manufacturing costs without having to invest in headers.
• Glow-wire compatible versions (meeting IEC 60355-1 safety standards) ensure safety and protection of end-users in the event of glow-wire overload.
• Positive-lock design (applicable to non-glow-wire-compatible versions only) offers strong PCB-to-connector retention.
• Polarized housing Ensures correct orientation with the PCB.
• Bifurcated (dual contact-point) terminals support up to 7.0A current allows secondary current paths for long-term electrical performance and reliability.
• Polarized crimp terminal ensures correct terminal orientation and insertion.
• Connectors without locking features (option) give pricing flexibility to suit customer needs.

Applications

• Consumer/Home Appliances
  • Fitness
  • Home Appliances
  • Home Entertainment
  • HVAC
• Industrial
  • Power (Power Supplies, UPS)
  • Wire-to-Device
• Solid State Lighting
  • Indoor and Outdoor Illumination

See also:
Molex Edge Mate Wire-to-Edge-Card Power Connectors (.pdf) for more product information, specifications, applications and ordering information.
