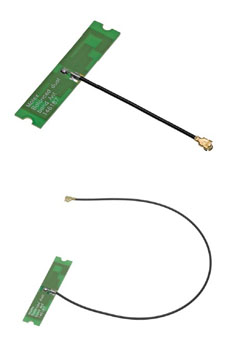

Molex transmission-balanced PCB antenna

Combining higher radiation efficiency and greater space savings, MOLEX transmission-balanced PCB antenna offers robust installation features over a wide range of industry and technology-based applications.

Features and Benefits

• Compact (40.95 by 9.00mm) rigid PCB antenna combines greater space savings with secure mounting to the application device chassis
• Total efficiency values of 80% minimum (2.4GHz band) and 70% minimum (5GHz band) high antenna radiation performance
• Balanced antenna with ground-plane-independent design reduces engineering resources and costs needed to mitigate PCB ground-induced radiation
• Coaxial cable to center-fed antenna attachment with over 18.0N of pull force ensures robust antenna reliability and connectivity to radio device
• Wide selection of micro-coaxial cable lengths from 50 to 300mm extends connectivity for maximum design flexibility

Applications

• Telecommunications/Networking
  • Wi-Fi devices
  • Wireless LAN (WLAN)
  • IEEE 802.11b/g/n devices
• Industrial applications
  • Machine to machine (M2M) communication
  • Smart meters
  • 2.4GHz ZigBee IEEE 802.15.4 devices
  • 2.4 GHz and 5 GHz Industrial, Scientific and Medical (ISM) band systems and wireless Devices
• Consumer Electronics (CE) Applications
  • Cameras
  • Mobile gaming devices
  • Personal navigation devices
  • Wireless internet TV and audio devices
• Medical
  • Telemedicine and Telehealth device
• Automotive applications
  • Bluetooth devices
  • Infotainment devices
  • Mobile hotspots

See also:
Molex transmission-balanced PCB antenna (.pdf) for more product information, specifications, applications and ordering information.
