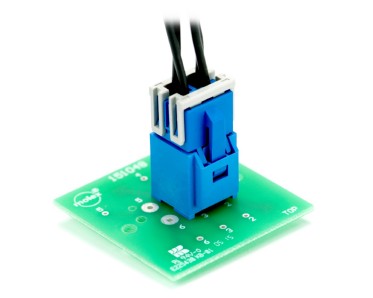

Molex CP-6.5 Wire-to-Board Connectors

Leveraging full keying and color-pairing features, foolproof CP-6.5 wire-to-board connectors enhance user-safety while speeding up consumer and industrial interconnect assembly applications.

Features

• Wide spectrum of housing colors
• Polarization keys on housing rib
• Positive lock feature on housing
• Kinked soldertails
• Absence of drain-holes in PCB headers
• Headers are 260°C wave-solder-process capable

Benefits

• Allows quick identification of mating combination for assembly and repair
• Eliminate mis-mating and consequent electrical shorting of application
• Produces an audible click when fully mated
• Provide added header-to-PCB retention during solder reflow
• Ensure compatibility with conformal coating (potting)
• Ideal for high-temperature assembly processing

Applications

• Consumer / Home Appliances
  • Washing machines
  • Water heaters
  • Air-conditioners
• Industrial / Industrial Automation
  • Industrial controls
  • HVAC
  • Copiers
  • Vending machines
  • Security systems

See also:
CP-6.5 Wire-to-Board Connectors (.pdf) for more product information, specifications, applications and ordering information.
