MOLEX - HyperQube 6.00mm Connector

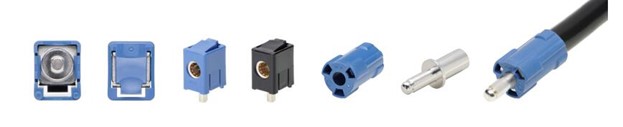

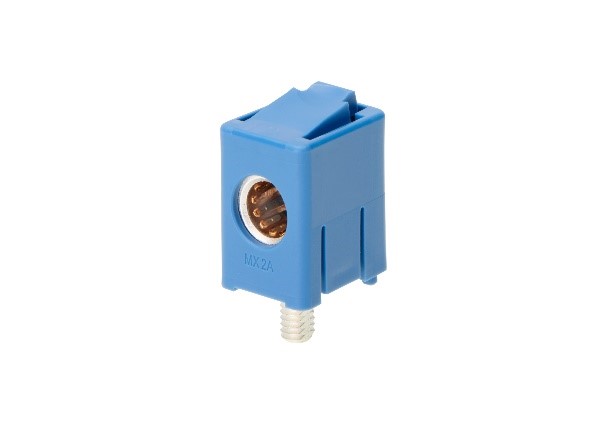

The HyperQube High-Voltage, High-Current product family is an innovative, high-performance connector system designed with our proven COEUR socket technology. This technology ensures a large conductive surface area to minimize heat generation and deliver high-current-carrying capacity to meet the demands of space-constrained applications. HyperQube interconnects meet rigorous industry standards and offer enhanced features for overall efficiency. Realize secure connections, simplified installations and optimized performance with high-power HyperQube connectors.

Advantages and Features:

• Achieves space savings in a compact design: The mated height (19.50mm), mated length (43.70mm) and width (17.70mm) are ideal for space-constrained applications.
• Offers time savings with accurate mating: Plug housings and printed circuit board (PCB) receptacles are available in three colors to guide operators during system integration to ensure proper mating when multiple cable assemblies are used in an application.
• Provides high-power density:With a current rating of 120.0A and a PCB footprint of 12.30 by 15.40mm, the HyperQube connector’s power density rating is 63.4A per 1 cm2 of PCB real estate.
• Delivers robust electrical performance: With Molex COEUR socket technology, there is low contact resistance minimizing heat generation at the contact interface, allowing for highcurrent loads. The multiple contact beams make it well suited for highshock and high-vibration applications.
• Ensures receptacles are correctly placed and properly oriented on the PCB or busbar, eliminating manufacturing issues: The polarizing pegs' sizes and locations are unique for each PCB receptacle color option. This mechanical-keying scheme ensures PCB receptacles are properly located.
• Affords design flexibility: The PCB receptacle’s external thread design enables the connectors to be attached to either PCB or busbars. A wide range of crimp contacts (2, 4 and 6 AWG) are available, meeting currentcarrying requirements for applications. Offers manufacturing flexibility The PCB receptacle’s external thread design enables a PCB or busbar to be easily reworked if the connector is damaged during handling.
• Provides safety for workers: As a safety feature, the socket, crimp contact and cable assembly’s stripped wire leads of mated HyperQube connectors are covered. The touch-safe mated connectors help technicians avoid electrical shock.

Applications:

• Data Centers Servers
• Switches
• Energy Storage
• Inverters Industrial
• Automation Motors
