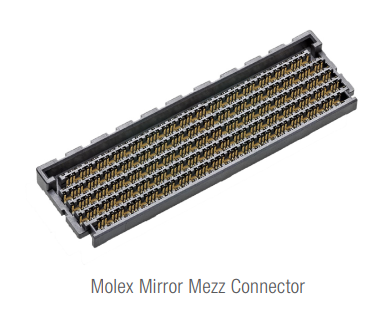

Molex Mirror Mezz 15 x 11 OCP Connectors

Footprint-compatible, hermaphroditic Mirror Mezz 15x11 OCP Connector lowers application costs with stackable mating that supports data speeds up to 56 Gbps per differential pair, for telecommunications, networking and other applications.

Features

• Robust shrouded housing design encapsulates the pin field, protecting the pins and offering blind-mate guidance to eliminate any possibility of mis-mating
• Contact beam structure of a mated combination prevents vibrations and terminal lift to ensure a constant 2-points of contact for electrical reliability. Beam geometry offers reliable normal force for harsh environments and 1.50mm of nominal contact wipe to ensure sufficient engagement
• Stitched BGA design offers greater cost savings than insert-molded BGA attachments. Stitched contact structure reduces lead times and the connector design simplifies product matrix
• Flex cable links offer cost savings and excellent SI with controlled channels and pinned grounds and enable relaxed tolerancing for offsets between boards and flexible architectures
• Wide ground pins balance the electrical field and shield the differential pair from surrounding transmission lines
• 2 electrically tuned signal contacts cleanly transmit high-speed signals for maximum signal integrity surrounding transmission lines
• Intricate terminal structure design provides numerous mechanical strengths while also benefiting from cutting-edge electrical features, for some of the fastest speeds in the industry
• Precise arranged combination of signals and grounds maximizes high-speed performance and clean routing out of the connector footprint, with precisely arranged and populated pin fields transmission lines
• Different paddle-to-contact bend direction between the rows minimizes the cross-talk between rows.

Applications

• Data/Computing
  • Servers
  • Networking
  • Storage
• Telecommunications/Networking
  • Infrastructure
  • Networking

See also:
Molex Mirror Mezz 15 x 11 OCP Connectors (pdf) for more product information, specifications and ordering information
OCP Accelerator Module Design Specification V1P0-3
