Combo Antennas

Molex's Combo antennas offer a combination of long-range connectivity, high power efficiency and easy integration advantages for IoT, GPS and M2M applications.

Features & Benefits:

• Feeding pad for GNSS band feeds electrical signals from the transmission line on the PCB to the antenna for Wi-Fi band irradiation
• Feeding pad for the 2.4/5GHz (Wi-Fi) band feeds electrical signals from the transmission line on the PCB to the antenna for Wi-Fi band irradiation
• Antenna Radiator acts as a transducer to converts unguided electromagnetic waves to guided electromagnetic waves and vice versa
• Fixing pad firmly anchors antenna housing onto the SMT pad of the PCB

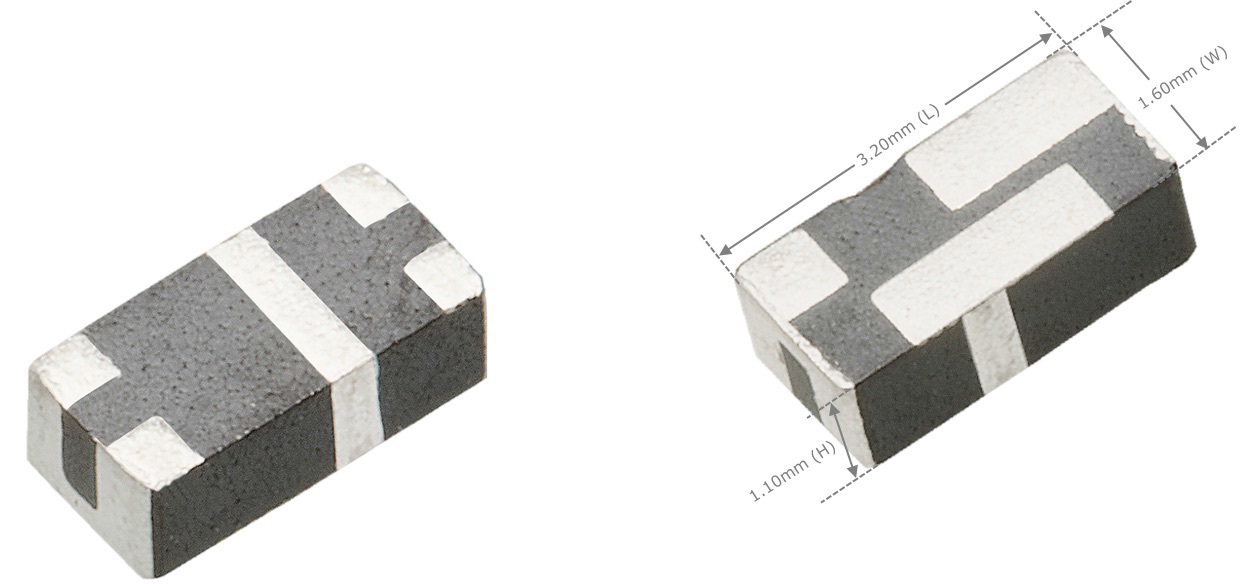

• Ceramic Antenna Housing Compact, inexpensive and easy to integrate into applications subject to high reflow temperatures
• Grounding pad provides electrical grounding of antenna onto the application PCB
• Feeding pad connects to the radio transceiver via a 50-Ohm transmission line on the PCB. Electrical signals from the transmission line are fed through this pad on the PCB
• Antenna Radiator acts as a transducer to converts unguided electromagnetic waves to guided electromagnetic waves and vice versa
• Grounding pad provides electrical grounding of antenna onto the application PCB
• Pick-and-Place Feature facilitates automatic placement during assembly
• Ceramic Antenna Housing is compact, inexpensive and easy to integrate into applications subject to high reflow temperatures
• Two holes on the sides of the antenna facilitates secure screw-nut mounting on application chassis
• Balanced Antenna offers consistent performance throughout antenna; antenna resonance not affected by cable length
• Fixing pads firmly anchor antenna housing onto the SMT pad of the PCB
• Tape Liner facilitates easy peel and stick mounting
• Compact PCB Antenna combines space saving advantages with mechanical robustness for rigid mounting
• 6 Micro Coaxial Cable Length (50, 100, 150, 200, 250, 300mm) ensures maximum design flexibility in meeting connectivity needs

Applications:

• Consumer
• Smart Homes
• IoT
• Automotive
• Connected Vehicle
• Industrial
• Smart Cities

See also:
Molex Combo Antennas (.pdf) for more product information, specifications, applications and ordering information.
