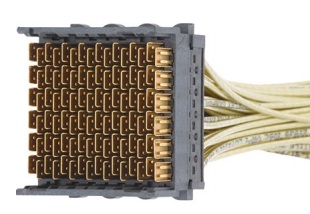

Molex's Impel and Impel Plus Custom Backplane Cable Assemblies

Molex's Impel and Impel Plus Custom Cable Assemblies deliver next-generation data rates with industry-leading signal integrity and density in a complete backplane solution.

Features and Benefits:

• Broad-edge coupled signal pairs in lead frames optimizes signal integrity performance
• Cable assemblies with Temp-Flex Twinax Cables (28 or 30 AWG) achieves data rates required by telecommunications and data center industries
• Up to 40 Gbps (NRZ) with Impel Connector; Up to 56 Gbps (NRZ/PAM4) with Impel Plus achieves data rates required by telecommunications and data center industries
• Staggered mating interface lowers mating force. Eases assembly and operator fatigue
• 3-, 4- and 6-pair Impel Backplane Connectors available off the shelf provides design flexibility and faster time to market
• Fully shielded between columns through the mating surface delivers signal integrity performance and prevents crosstalk

Applications:

• Telecommunications/Networking
  • Servers
  • Switches
  • Routers
• Data Center Solutions
  • Server
  • Storage Systems
• Data / Computing
  • Servers
  • Storage Systems

See also:
Molex's Impel and Impel Plus Custom Cable Assemblies Deliver (.pdf) for more product information, specifications, applications and ordering information.
