Molex Milli-Grid™ Connector System

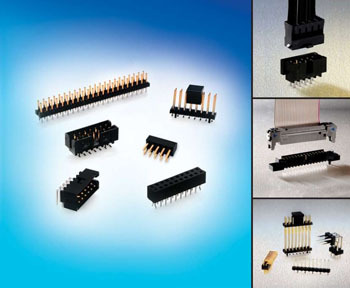

A high-density connector system based on a 2.00 by 2.00mm grid pattern that offers complete design flexibility for wire-to-board, board-to-board and cable-to-board applications. Available in gold or tin-plated, Molex's Milli-Grid™ family includes crimp terminals, housings, headers and receptacles. Receptacles are available in single- and dual-row versions with a variety of mating and termination options. Headers are available in shrouded and unshrouded styles.

Features and Benefits

• Available gold or tinTin provides cost-savings; low contact resistance and good solderability
• Early entry system crimp terminals Provides longer pin wipe for a more reliable contact
• Center polarization keyPrevents mismating
• Locking ramps Provide strong retention force to header
• IDT receptacle strain relief (optional) Enhances cable retention
• Center polarization slot Prevents mismating
• Locking windows Ensure firm locking to receptacle
• Marking feature Provides marking for first circuit location

Application

• Office Machines
  • Printers
  • Fax Machines
  • Scanners
  • Copiers
• Computers / Peripherals
  • Storage
  • Servers
  • Modems
  • Motherboards
  • Monitors
• Measuring / Analyzing
  Equipment
  • Security Systems / Alarms
  • Medical Monitoring
  • Lab Equipment
• Entertainment
  • Set-Top Boxes
  • Car Radios
  • Video / DVD Products
• Other Applications
  • Vending Machines
  • Gaming Machines
  • Exercise Equipment

See also:
Molex Milli-Grid™ Connector System (.pdf) for more product information, specifications, applications and ordering information.
