Molex Ultra-Fit™ Power Connectors

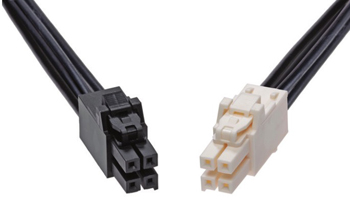

Molex Ultra-Fit™ Power Connectors eliminate same-circuit-size cross mating, optimize space savings and reduce terminal back-out with low mating force.

Features and Benefits:

• Multiple mechanical keying and color-coded options Allow same-circuit, multiple connector use with virtually no chance of cross mating. Color coding provides visual indication of the proper mating connector - enabling faster assembly
• 17% reduction in pitch over similar power connectors Current-dense design saves PCB space, allows for smaller packaging without sacrificing current-carrying capabilities.
• Optional TPA (Terminal Position Assurance) retainer Guarantees the terminal is fully seated in the housing to reduce terminal back-out, retains terminal if main retention feature fails.
• Ultra-low mating force terminal Reduces operator fatigue and improves assembly compliance for high-circuit applications.
• Positive-lock housing with anti-snag design Ensures mated connector assemblies will not accidentally disengage. Provides an audible click while mating, protects latch from damage due to wire snags.
• Fully isolated terminals Protect against potential damage of the header and receptacle terminals during handling and mating. Terminal interface with six independent points of contact (split-box terminal design) offers redundant, secondary current paths for long-term performance and reliability.

Applications:

• Consumer / Home Appliance
  • Washers
  • Refrigerators
• Telecommunications/Networking
  • Hubs
  • Servers
• Transportation
  • Infotainment
  • Interior
• Lighting
  • Ballasts
  • Home Lighting Fixtures
• Aerospace and Defense
  • C4ISR
• Industrial
  • Food and Beverage
  • Assembly Line Equipment
• Medical
  • Patient Care Equipment
  • Healthcare IT

See Also:
Molex Ultra-Fit™ Power Connectors (. pdf) for more product information, specifications, applications and ordering information.
