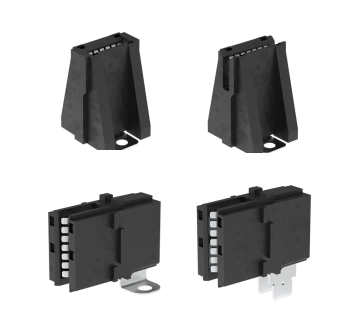

PowerPlane Busbar Power Connectors

Molex's PowerPlane Busbar Power Connectors deliver high-current performance along with various configurations and feature options, making them applicable for a wide range of power-distribution applications.

Features and Advantages：

• High-conductivity copper alloy.
• Float-mount design available.
• Silver plating for lower resistance.
• Low-voltage drop.
• Dimensionally compatible with competitors'connectors.
• Multiple, independent points of contact.
• One part number mates with 3.00- and 3.18mm thick busbar tabs.
• Mounts to a busbar via two holes using customer-supplied machine screws as well as solder tab options.

Markets and Applications：

• Consumer
• Data center solutions
• Networking
• Telecommunications
• Industrial Automation
• Commercial Vehicle
• Energy Storage Systems

See also:

PowerPlane Busbar Power Connectors - for more product information, specifications, and ordering information.
