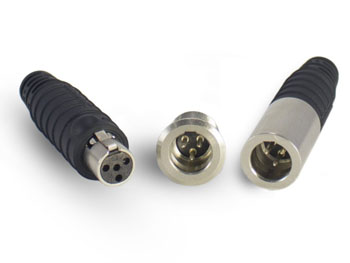

Switchcraft SEALED Tini-QG® MINI XLR

Switchcraft is pleased to announce the new sealed Tini-QG� line of mini-XLR connectors. These new connectors are waterproof to IP66 when mated and feature an updated molded handle design. They also feature an easy to operate push-button latch and a flush-mount panel design and can withstand at least 5,000 insertions/withdrawals. This makes them an excellent connector for applications ranging from medical instruments to audio connectors to outdoor equipment.

These products have been created in response to customer demand in applications such as audio, medical and architectural lighting. They are built with the same quality materials as Switchcraft�s other colour options, including the metal construction of the AAA and DE series.

Features & Benefits

• Sealed to IP66 when mated.
• Sealed to IP65 unmated (panel only)
• Intuitive pushbutton latching mechanism
• Available in 3 thru 8 contacts as cable end, cable-to-cable, and panel mount
• Front mount panel sits flush, protecting the connector from physical impact.
• Rated to withstand a minimum of 5,000 insert/ withdrawal cycles in 3-5 pin versions (2,000 cycles 6-8 pins)
• Can be mated with unsealed Mini XLR (IP rating does not apply)

Applications

• Audio such as wireless bodypacks or video camera audio connections
• Medical Instrumentation and compact data collection
• Harsh environment connector requirements

See Also:

Switchcraft SEALED Tini-QG® MINI XLR (pdf) for more product information, specifications, applications and ordering information.
