High Amperage Power Jacks and Plugs with IP68 Option

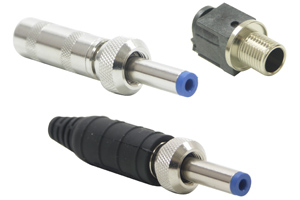

Connector specialist Switchcraft has launched a range of higher current power jacks and plugs that are rated to 11A and 24VDC.

This new range contains power jacks with through-hole or surface mount terminations and cord plugs that have the option of locking on to the power jack. A further feature is the option of IP68 sealing when the plug and jack are mated.

Stephen Waldron, Switchcraft's Director of International Sales, added: "Our existing line of power jacks and plugs is extremely popular and these new products have been developed and introduced to meet market demand for increased power capability in portable equipment connectors."

Features & Benefits

• Up to 11A current rating (carry), 24 V DC
• Sealed version up to 5A current rating (carry) at 65°C, up to 30 VDC
• -40�C to 105°C operating temperature
• Locking/Non-Locking versions available
• Automatic switch over from AC to DC permitted by sleeve shunt spring
• Available in sealed & non-sealed versions
• Sealed versions sealed to IP68, NEMA 250 (6P) (when mated)

Applications

• Any sealed data transmission
• Military or industrial GPS location devices
• Instrumentation
• Medical equipment
• Marine Applications
• Transportation
• General industrial electronic applications
• Power supplies
