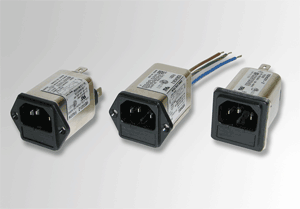

TE Connectivity and Heilind Electronics now offer a 10-amp version of its Corcom GG series general-purpose and HG series medical filtered power-entry modules. A 5in (127mm) wire-lead option has also been introduced for the HG medical modules to aid in module installation.Previously, the lines were offered in ratings of 1, 3 and 6A.

The GG series of power-entry modules combines the functions of a general-purpose RFI filter with an IEC power-cord connector and single or dual metric fuse holder. The HG series is the medical version of the GG series, with reduced line-to-ground capacitance to meet UL 2601 patient care requirements.

Both series are compact - they are TE Connectivity' smallest filtered power-entry modules with metric fuse holders.
The GG and HG series of power-entry modules are available with current ratings up to 10A at 250 V AC, 50/60 Hz.
With the addition of the lead-wire option to the HG series, both the GG and HG series are available with either industry-standard 0.25in (6.35mm) tab terminals or 5in lead-wires for load-side terminations.

These modules are UL recognised, CSA certified and VDE approved.GG and HG series power-entry modules are used in communications; computer and consumer electronics; and industrial, commercial and medical equipment.

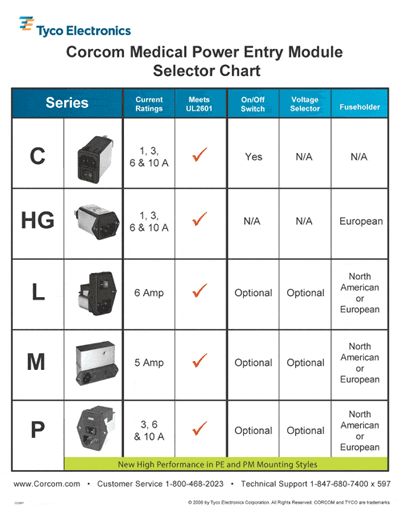

To dowload this file, click here.

Key Features:

• Filtered medical & general purpose modules
• Compact size
• 1-10 A current rating
• Single/dual fuse
• Rated at 250 VAC
• UL Recognized, CSA Certified and VDE Approved
• RoHS Compliant

Applications:

• Communications Equipment
• Instrumentation & Medical Equipment
• Computer & Consumer Electronics
• Portable Electronic Devices
• Light Industrial

See also:
Corcom GG/HG Series (.pdf) for more product information, specifications, applications and ordering information.
