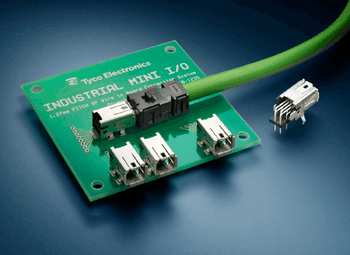

The new Industrial Mini I/O connector system from TE Connectivity features two points of contact to maintain performance and increase reliability in high vibration environments. The compact connector, approximately one-fourth the size of a traditional RJ-45 plug, includes a latching system designed to protect the plug from pull-out during high vibration or collision.

The polarized, wire-to-board interface features two keying options to prevent mismating and consists of eight individual circuits to accommodate I/O signals. Electrical specifications include a current rating of 0.5 Amps and a 30 Volt rating on 0.635mm centerline spacing. The connector’s operating temperature ranges from -40 to +70 degrees Celsius with a durability of 1500 cycles. Product offering includes SMT and through-hole configurations.
The product -- suitable for industrial controllers, PLC’s, motion control and robotics in the industrial automation market -- meets Cat5e requirements when used in Ethernet applications.

Key Features:

• Two points on contact interface
• Smal compact size
• Latching feature
• Polarized

Applications:

• Industrial controls
• Motion control
• PLC’s
• Robotics

See also:
Industrial Mini I/O Connector System (.pdf) for more product information, specifications, applications and ordering information.
