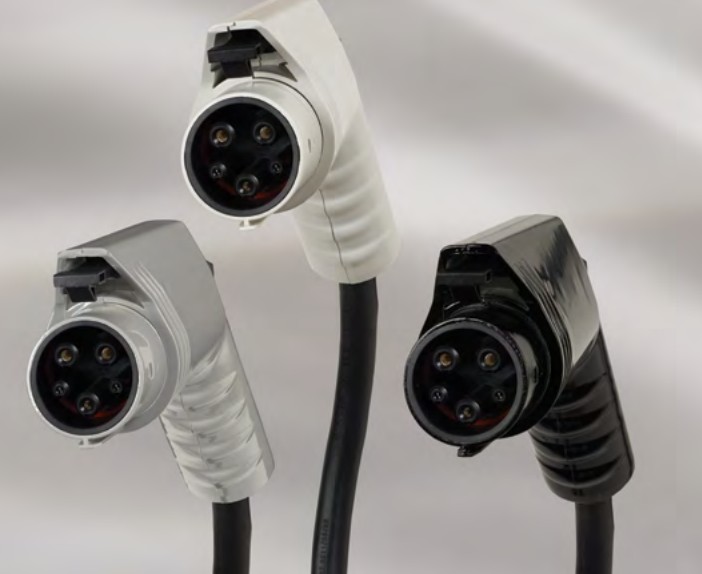

TE Connectivity Introduced DIBO EV Charging Cable Assemblies

TE Connectivity redesigned its EV Charging Cable Assemblies for Type 1 with an ergonomical design handle to fit security enclosures. TE EV charging cable assemblies offer high mating cycles, magnetically operated solid state switches versus a mechanical switch allowing for an increased life expectancy and TE Madison Cable high flex cable for maximum flex life.

Contact assemblies are sealed with a liquid silicon rubber to prevent against corrosion and moisture inside the connector body. Product meets the SAE J1772 specifications, UL Recognized per UL 2251 and RoHS Compliant. Designed with the end user in mind, materials provide a crush-resistant connector body, meet outdoor classification F1 (UL) and are resistant to common automotive fluids.

Key Features

• Improved housing design
• Housing seal for each contact
• TPA Contact Retention
• Integrated cable clamp exceeds SAE JI772
• Internal cable strain relief
• Latch, Inlet lock capable
• Materials are resistant to UV (FI) exposure and common automotive fluids

Key Benefits

• Individual contact seals prevent moisture and potential corrosion of the crimping zone
• Increased lifetime with magnetically operated solid-state switch
• Latch, Inlet Lock Capable wide enough to meet the SAE spec for inlet locking
• TE Madison Cable high cable designed to provide maximum flex life

Applications

US - Single-ended termination for integration into EVSE by equipment builder

See also:

TE BIBO EV Charging Cable Assemblies (pdf) for more product information, specifications, applications and ordering information.
