TE Raychem Instalite Lightweight Braid System

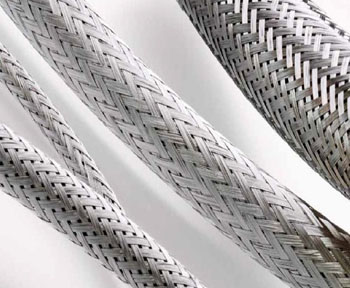

TE Connectivity (TE) introduces the Raychem INSTALITE lightweight braid system, offering up to 50% weight savings over traditional copper braids. INSTALITE lightweight braids have excellent electrical shielding performance over a wide frequency range. Made from a high-performance nickel-plated copper alloy, the RoHS-compliant pull-on braid is supplied on a tubular former for easy installation onto various substrates. Available in diameters from 3 mm to 20 mm, INSTALITE braids are more flexible than traditional metal braids providing an easy transition from traditional braid systems.

Benefits

• Help reduce product weight with high-performance nickel-plated copper alloy that is up to 50% lighter than traditional copper braids
• Protect application across a wide EMI spectrum including lightning protection and high frequency screening
• Help ease installation with standard termination methods and tooling
• Enable design flexibility with product specifications available in diameters from 3mm to 20 mm
• Improve flexibility of cabling with the unique INSTALITE product design

Applications

• Military harnesses
• Commercial aerospace
• Unmanned vehicles
• Space

See also:

TE raychem instalite lightweight braid system (pdf) ) for more product information, specifications, applications and ordering information.
