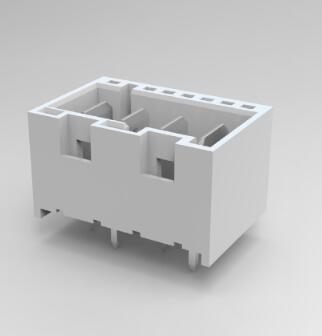

Next Generation Rast 5.0 High Retention Header
The next generation RAST 5.0 high retention header offers a secure connection with customizable features to meet application specific requirements. During assembly, printed circuit board (PCB) tabs are inserted in these headers from the top-down, as compared to traditional bottom-up tab assembly, which provides greater retention force and supports easier assembly. They are available in potted or standard versions and in tube or bulk packaging to meet a range of assembly needs. Applications for the next generation RAST 5.0 high retention header include front-loading washing machines, air-conditioners and small home appliances. |
 |
|
Electrical:
- Rated Current: 20A
- Rated Voltage
- Full Loading: 400V AC
- Selective Loading: 600V AC
- Insulation Resistance: 5000MΩ
- Dielectric Strength: 3000V/m
|
Mechanical:
- Centerline (mm): 5
- Configuration: Vertical Through Hole
- Number of Positions
- Potted Version: 2-4
- Standard Version: 2-7
|
|
Materials:
- Operating Temperature (o C): -40 to +120
- Housing Flammability Ratings 94 V-0 and IEC 60335-1 GWT* 750°C
- Contact: Copper Alloy, Tin plating over Nickel
|
|
Additional Information：
Product Compliance/Certification：
Features：
- High retention force with top-down loaded PCB tabs
- Available in potted or standard versions
- Multiple color and keying options meeting RAST standards
- Available in bulk or tub packaging
For more RAST 5.0 HIGH RETENTION HEADER recommendations or customizations, please feel free to contact your sales team at Heilind Asia Pacific.
|
