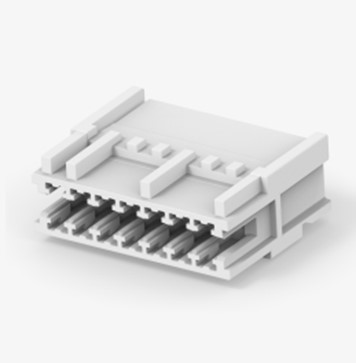

Rast 2.5 Standard Timer Crimp Connector
|
RAST 2.5 standard timer crimp connectors provide an easy, reliable connection with space-saving low profile design for a wide range of signal systems. As compared to RAST insulation displacement contact (IDC) versions, this crimp version of the RAST 2.5 connector is better suited for applications with double insulation wire or with PVC tube- encased wire because wire termination is easier when contacts are separate from the housing. The connector has additional features to support assembly reliability, including lance-less contacts that are less prone to damage or deformation and an innovative hook and latch design that helps secure and align the contact in the housing. Contacts are further secured by an integrated terminal position assurance (TPA) device that helps prevent terminal backout. Applications for RAST 2.5 standard timer connectors include washing machines and home appliances.
|
 |
|
Electrical:
- Rated Current: 3A
- Rated Voltage
- Full Loading: 50V AC
- Selective Loading: 250V AC
Mechanical:
- Centerline (mm): 2.5
- Number of Positions: 3-5, 7, 9
|
Materials:
- Operating Temperature (oC) - 40 to +105
- Housing Flammability Rating: UL 94 V-0 and GWT*
- Contact Materials
|
Standards & Specifications
Key Features:
- Integrated TPA design helps ensure contacts are fully seated and cannot backout
- Lance-less contacts help improve assembly reliability by helping to reduce risks of contact deformation or damage
- Innovative hook and latch design helps secure and align the contact in the housing
- Low profile design (14.5mm) supports more space limited applications
Learn More：
For more RAST 2.5 STANDARD TIMER CRIMP CONNECTOR recommendations or customizations, please feel free to contact your sales team at Heilind Asia Pacific.
|
