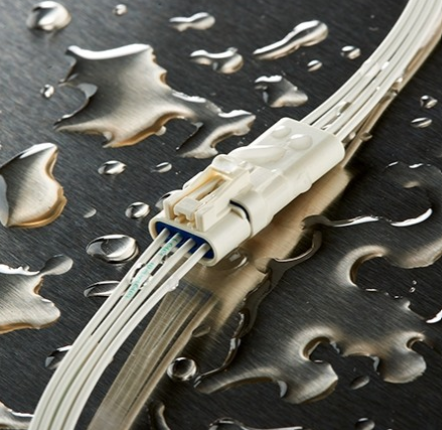

TE Connectivity introduced 2.5mm Sealed Signal Double Lock Connector

TE Connectivity (TE), a world leader in connectivity and sensors, introduced the 2.5 mm [.098”] centerline pitch Sealed Signal Double Lock connectors are compact, single row connectors available in both wire-to-wire and wire-to-board configurations. The Sealed Signal Double Lock connector accepts 26-20 AWG [.121-.601 mm²] wire with insulation diameters up to .071” [1.8 mm], a voltage rating of 250VAC or VDC, and is rated up to 3A per line. With best in class IP67 grade water proofing, these connectors provide protection against applications used in environments such as high humidity, water, dust and debris. The 2.5mm Sealed Signal Double Lock connector series includes features to make assembly easier for operators by providing snag-proof latches, polarized terminals, and optional TPA’s.

Benefits:

• IP67 rated protection against water and dust
• Contacts are on a miniature 2.5mm centerline to provide a compact design solution
• 3 amps max. current rating, and 250 VAC voltage rating
• UL94-V0 and Glow Wire Test (750°C, no flame) to meet global industry safety standards
• Snag-proof latch provides for ease of assembly
• Optional TPA's (Terminal Position Assurance) help to ensure proper assembly
• Polarized lance-less terminals to prevent incorrect insertion reducing assembly errors

Applications:

• Refrigeration
• Water Heater
• Cooking - Range Hood
• Laundry - Washing Machine and Dryer
• Rice Cooker
• Water Purifier
• Outdoor lighting
• Commercial lighting
• Outdoor tools
• Industrial refrigeration
• Power cords
• Automotive battery chargers
• Smart toilet seats
• Humidifier

See also:
TE Connectivity introduced 2.5mm Sealed Signal Double Lock Connector (.pdf) for more product information, specifications and ordering information.
