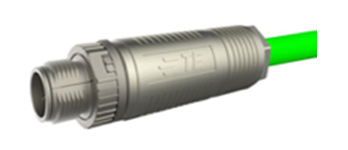

TE Connectivity introduced Industrial M12 X-code Field Installable

With only two parts the latest TE Connectivity's M12 X-code FI Connector is easy to install in the field without the chance of dropping parts into places where they can not be recovered from. The cable leads can be stripped at arbitrary length (so no measuring upfront required) and will be terminated for optimal performance by the TE patented lever technology combined with the automatic wire cut off function integrated in the connector. This unique standardized tool-less connector series enables customers to fasten assembly time to the cable and cable braid. With the final closing of the connector, an error free 10 Gb/s connection (Cat6A) with IP67 (optionally IP68) environmental shielding is realized without the usage of any tools.

Features:

• Insulation Displacement Contacts (IDC)
• Automatic wire cut-off function integrated in connector
• Tool-less assembly installation
• Speed up to 10 Gb/s

Applications:

• PLC
• Servo Drive
• Industrial Ethernet switches
• Industrial wireless access points
• Industrial Machinery
• Robotics

See also:
TE Connectivity introduced Industrial M12 X-code Field Installable (.pdf) for more product information, specifications and ordering information.
