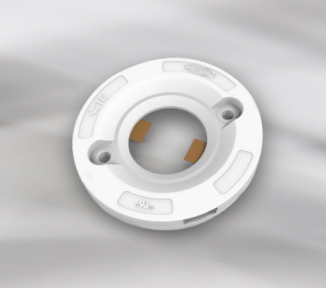

TE Connectivity introduced LUMAWISE Drive LED Holder Type Z50 DALI-2

TE Connectivity's (TE) LUMAWISE drive LED holder type Z50 DALI-2 (Digital Addressable Lighting Interface) allows luminaire designers to remove driver boxes from spot and track lighting, creating a more aesthetically pleasing lighting solution. LUMAWISE drive LED holders bring integrated functionality to TE's already successful Zhaga inspired, range of LED holders. Driver on board design incorporates DC/DC driver functionality into the LED holder providing a low profile constant current driver well suited for COBs used in spot and track lighting applications. Designed for 48VDC input, LUMAWISE drive LED holders work with a wide range of readily available constant voltage power supplies meaning powering multiple fixtures off a single power supply is now possible. The LUMAWISE drive LED holder Type Z50 DALI-2 can be controlled with the DALI protocol. DALI lamp fixtures are intelligent, dimmable and can be controlled, monitored and maintained using a two-wire global IEC 62386 open standards communication protocol.

Benefits:

• Provide thermal and electrical connection to four different CoB sizes:
  • 16x19mm
  • 19x19mm
  • 20x24mm
  • 24x24mm
• Achieve design flexibility with an LED holder available with four different current outputs:
  • 350mA
  • 500mA
  • 700mA
  • 1050mA
• Obtain added functionality with DALI control

Applications:

• Track Lighting
• Spot Lighting
• Downlights

See also:
TE Connectivity introduced LUMAWISE Drive LED Holder Type Z50 DALI-2 (.pdf) for more product information, specifications and ordering information.
