TE Connectivity introduced LUMAWISE Endurance S Base

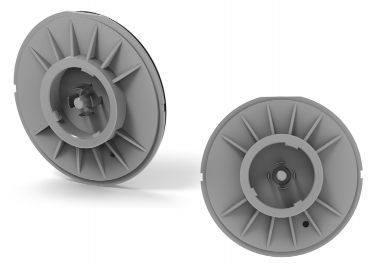

TE Connectivity (TE) LUMAWISE Endurance S base with vent is available in 80mm diameter. An integral vent maintains a sealed enclosure while providing pressure equalization inside the sealed base assembly. These Zhaga Book 18 street lighting connectors consist of a standardized receptacle interface on the lighting fixture and the base and dome components which combine to house a control module. The IP66 rated receptacle assembly, base and dome combinations provide a sealed electrical interface between new slim design LED streetlights and the associated sensor modules.

Benefits:

• Extend product life in harsh environments with an IP65 and IP66 rated product
• IK09 high impact resistant
• Flexibility in design with upwards, downwards and sideways facing mounting versatility
• Secure low torque mating of sealing cap or base and receptacle

Applications:

• Street and Area Lighting
• Sensor Ready Control Applications
• Outdoor Luminaires
• Wall Packs
• Parking Lots
• Walkways
• Photo Controls
• Central Management System
• City Management System
• Other sensor modules e.g. occupancy

See also:
TE Connectivity introduced LUMAWISE Endurance S Base (.pdf) for more product information, specifications and ordering information.
