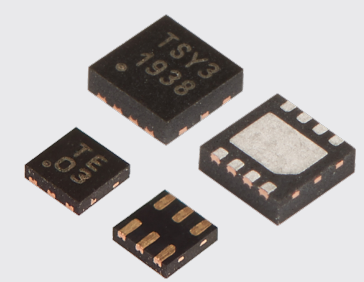

TE Connectivity introduced TSYS03 Miniature Digital Temperature Sensor

TE Connectivity (TE) has developed a new digital temperature sensor called TSYS03 to meet these needs. With its industry leading ultra-compact size of 1.5 x 1.5 mm, the TSYS03 enables lower thermal response time, offering an ideal solution for precise temperature sensing in applications with space constraints.

Benefits:

• Enable ultra-compact design in two different packages, TDFN8 and XDFN6.
• Offer factory calibrated digital output with configurable I 2C Interface.
• Facilitate extended operating range from -40°C to +125°C with resolution up to 0.05°C.
• Support improved ASIC (Application Specific Integrated Circuit) design with excellent price-to-performance ratio.
• Ensure lower conversion time with precise temperature sensing and factory compensated output.
• Provide a low power consumption sensor suitable for battery-driven applications.

Applications:

• Industrial Control and food monitoring
• Medical probes and patient monitoring
• Vehicle battery monitoring
• Consumer goods and appliances
• HVAC and weather stations
• Smart Thermostats

See also:
TE Connectivity introduced TSYS03 Miniature Digital Temperature Sensor (.pdf) for more product information, specifications and ordering information.
