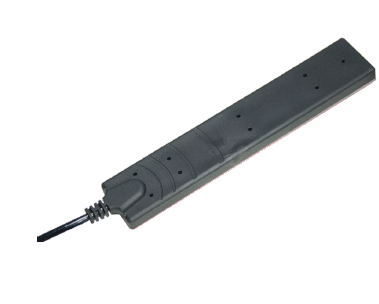

VDP Industrial Series Antenna

Remote Adhesive-Mount Cellular Antenna

The VDP Industrial series offers rugged remote-mount dipole antennas having excellent performance for all common 5G and LTE bands, cellular IoT (LTE-M and NB-IoT) applications, GNSS/ GPS and Wi-Fi/ISM.

VDP Industrial antennas are durable, low profile, IP67 rated, and UV protected. They mount permanently to non-conductive surfaces using the integrated adhesive patch and connect using RG-174/U low-loss cable terminated in an SMA (male pin) or FAKRA-C connector.

Features:

• High efficiency across all bands
• Low profile
  • 115.0 mm x 22.0 mm x 6.3 mm
• Durable UL 2556 SECTION 4.2.8.5 UV protected radome
• IP67 rated for heavy-duty outdoor use
• Low-loss RG-174/U coaxial cable for improved performance at higher frequencies
• SMA plug (male pin) or FAKRA-C connector

Application:

• Worldwide 5G, LTE, UMTS and GSM
• Cellular IoT: LTE-M (Cat-M1) and NB-IoT
• Frequency bands
  • T-Mobile: band 71
  • AT&T: bands 12, 14, 17
  • Verizon: band 13
  • Europe: bands 8, 20
  • Latin America: bands 5, 28
  • Asia Pacific: bands 5, 8, 20, 28
• Wi-Fi/ISM
• Global Navigation (GNSS)
• Internet of Things (IoT) devices

To learn more about TE’s VDP Industrial Series Antenna, please click to read: VDP Industrial Series Antenna

For more Interconnect recommendations and customizations, please feel free to contact your sales team at Heilind.
