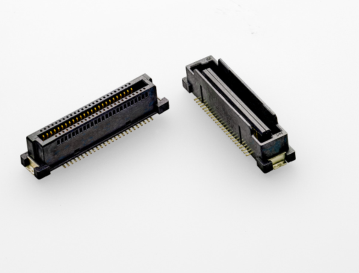

TE Connectivity's Next Generation 0.8mm Free Height Connectors

TE's next generation 0.8mm free height connectors achieve 32 Gbps+ speeds � one of the highest in the market � at a very competitive price point to enable main stream adoption in high speed data communication applications. These connectors perform at up to triple the speed of previous generations and will be capable of 56 Gbps PAM-4 and PCIe Gen 5, ensuring future-proofing toward future system upgrades.

Key Features:

• High speed, mid-density mezzanine reaches speeds of 32 Gbps+ and is 56 Gbps PAM-4 and PCIe Gen 5 capable
• Up to triple the speed of previous generation free height connectors
• Excellent price-to-performance ratio � one of the highest performing free height connectors in the market offered at a very competitive price
• Modular tooling enables 1mm stack height increments and flexible pin counts
• New design strengthens the plug/receptacle to enable better mating performance
• Maintains the same performance when de-mated up to 0.5mm

Applications:

• Servers
• Switches
• Routers
• Embedded computers
• Test equipment
• Measurement equipment
• Magnetic Resonance Imaging (MRI) machines
• High definition scopes

See also:
TE Connectivity's Next Generation 0.8mm Free Height Connectors (.pdf) for more product information, specifications, applications and ordering information.
