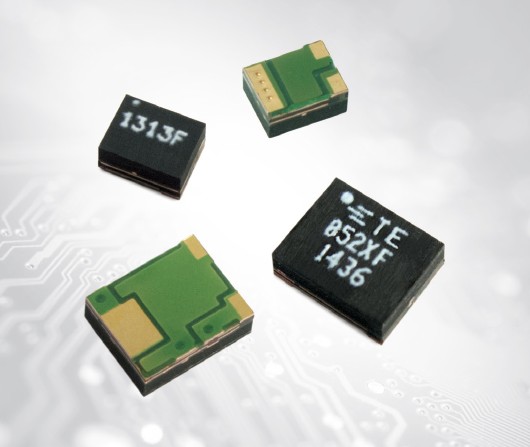

TE's PolyZen YC/YM Devices

Discover new opportunities with TE Connectivity's (TE) PolyZen YC/YM devices, offering coordinated circuit protection from damage caused by ESD (electrostatic discharge) or other electrical over-stress events. Due to technology limitations, over-stress events are usually defended by multiple discrete devices. TE's PolyZen YC/YM devices combine both precision Zener diode and a resettable PolySwitch PPTC (polymer positive temperature coefficient) into one component package. Therefore, TE's device helps enable simultaneous protection against damage from overvoltage, overcurrent, reverse-bias, ESD, and over temperature events more effectively than solutions using multiple discrete devices.

Benefits

• Help enable coordinated circuit protection in one component package
• Provide design flexibility with compact size
• Offer increased protection level against high-impulse overvoltage up to 150A (per IEC 61000-4-5) and ESD up to +/- 30kV (per IEC 61000-4-2)
• Comply with RoHS and halogen free standards

Applications

• POS displays
• LED lighting systems
• Set-top boxes
• Modems
• Security devices
• GPS systems
• Mobile phones, tablets and Ultrabook
• Other DC power ports
• ABS modules
• Motors

See also:

TE's PolyZen YC/YM Devices (pdf) for more product information, specifications, applications and ordering information.
