TE Connectivity's SOLARLOK 2.0

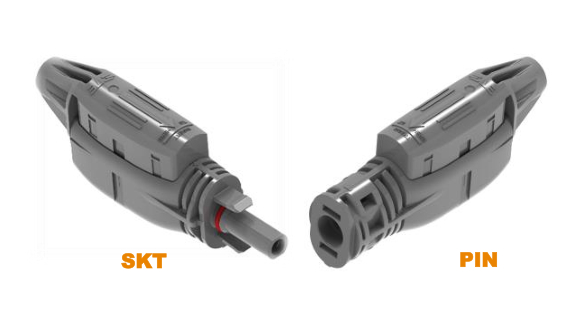

TE Connectivity's SOLARLOK 2.0 is a field installable connector using Insulation Displacement Contact (IDC) technology to offer the solar panel installer a quick, easy and reliable connection from the PV cable to PV panel. Applicable cable outer diameters are ranging from 5.5mm to 7.2mm and suitable for 14 AWG & 12 AWG & 10 AWG conductor sizes.

Features:

• True 1500V connector UL6703 / IEC 62852

• 15A (UL) /25A (TUV) ~ 2.5mm2 / 14 AWG
• 20A (UL) /30A (TUV) ~ 4.0mm2 / 12 AWG
• 30A (UL) /35A (TUV) ~ 6.0mm2 / 10 AWG

• 2.5mm² & 4.0mm² & 6.0mm² in same connector
• 14 AWG & 12 AWG & 10 AWG in same connector
• 5.5mm up to 7.2mm outer cable diameter

Benefits:

• Reduces 80% or more installation time
• Easy to use, plug-in, Snap-on
• Accelerates termination process
• Avoids cable stripping
• No custom tooling required
• Reduces total applied cost of value-chain
• Reliable Insulation Displacement Contact (IDC) technology
• Special gel-filling IPx8 water ingress protection (1m/24hours)
• Mates with TE PV4-S and PV4-PM series
• PV4-S PN 2270024-1 / PN 2270025-1
• PV4-PM PN 1971919-1 / PN 1971920-1

See also:
TE Connectivity's SOLARLOK 2.0 (.pdf) for more product information, specifications, applications and ordering information.
