TE Connectivity's VAL-U-LOK Connector Series with TPA Accessory

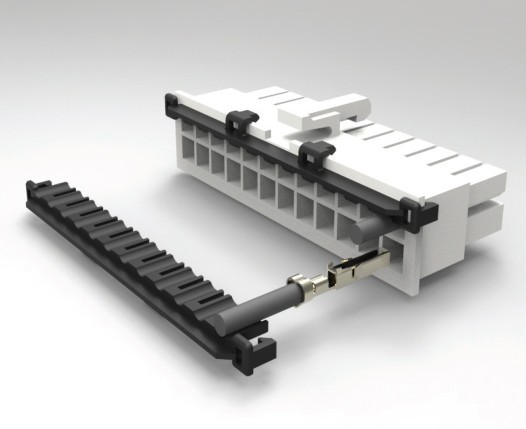

TE Connectivity's (TE) VAL-U-LOK product line expanded with a new design accommodating Terminal Position Assurance (TPA) accessories, helping guarantee a higher quality connection. TPA helps ensure contacts are fully seated in the housing and helps prevent contact disengagement and back out from the cavity when subjected to vibration, shock or pull force. TPA provides secondary protection to help reduce the possibility of safety and performance issues. New crimp, pin and socket contacts for discrete 26-18 AWG wires are designed to snap into these new housings and work in association with the TPA devices. These new additions to the 4.2 mm [.165 in] centerline product family support dual row housings. Rated up to 600 VAC and 9 A per line, the offering supports 2 to 24 position panel mount plugs, free-hanging plugs and receptacles. The new VAL-U-LOK connectors with TPA are intermateable with existing VAL-U-LOK connectors and headers, supporting wire-to-panel, wire-to-wire and wire-to-board applications.

Benefits

• Help ensure contacts are fully seated while providing an added measure against contact back-out with optional TPA
• Provide header and plug mating confirmation with audible latch
• Support a broad range of design and application needs with extensive product offering in single row, dual row, wire-to-wire and wire-to-board configurations
• Facilitate competitive retrofit supported by intermatability with market available products
• Save PCB space with side-by-side mounting capability
• Help meet flame-retardant safety requirements (IEC/EN 60335-1) with glow wire (GWT) material option

Applications

• Industrial control cabinet wiring.
• Motion control wiring for industrial robotics
• Vending Machines
• Architectural lightings
• Interconnections in refrigeration equipment
• HVAC
• Business Equipment
• Switching Power Supplies
• Garage Door Openers
• Coin Changers
• Audio / Video Devices

See also:

VAL-U-LOK connector series with tpa accessory (pdf) for more product information, specifications, applications and ordering information.
