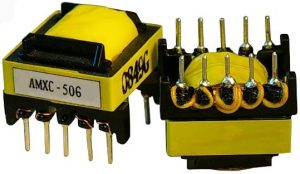

ZETTLER Magnetics Introduced Ferrite Transformer

Assembled on automated production lines with UL recognized materials, Zettler's range of high frequency switching transformers is a reliable and cost effective solution for power supply needs. Bobbin sizes range from E13 to ETD39, power range from 1W to 180W.

Key Benefits:

• Rapid prototyping
• Easily customizable
• Standard bobbin and core sizing for quick turnaround
• Vertical and horizontal layout options

Key Features:

• Universal 85-264VAC input range
• 4kV primary-secondary insulation
• Conforms to EN 61558 and EN 60950
• Creepage distance primary / secondary6mm
• Highly efficient, automated wire insulation process
• 100% production tested

See also:
ZETTLER Magnetics Ferrite Transformer (pdf) for more product information, specifications, applications and ordering information.
