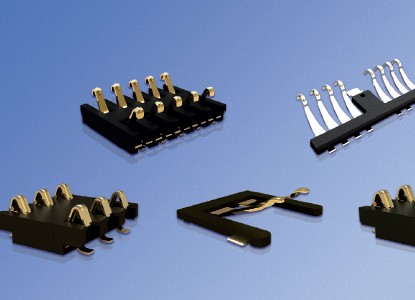

TE Connectivity New Board to Board Connectors
TE Connectivity introduces new compressive board to board connectors. These are low cost, highly reliable and versatile connectors, used to provide either power or signal connections between either two printed circuit boards or one printed circuit board and another electrical module. This product series helps save cost and space in most consumer electronic devices. Provides an easy and cost effective method for connecting PCBs, enables both power and signal connection in a small factor
Target Markets
Applications
- Smart phones
- Tablets
- HDD/SSD
- Ultrabook and notebook computers
- MP3 and MP4 players
- Navigation systems
- Game consoles
Key Benefits
- Provide an easy and inexpensive method for connecting multiple PC boards
- Enable both power and signal connection in a small form factor
- Support up to 2.0 Amps current rating for higher power applications
- Design for various, options working heights, pin counts and contact pitch with broad offering
- Allow for versatility in design on the PC board
- Enable production flexibility with pick-and-place soldering using standard equipment
See also:
TE Connectivity Compressive Board to Board Connector (pdf) for more product information, specifications, applications and ordering information.
|
